The Foundations of Digital Logic: A Comprehensive Guide to Binary Systems and Computer Architecture

The modern world relies entirely upon a mathematical abstraction that utilizes only two states: zero and one. This base-2 numbering system, known as binary, forms the absolute bedrock of all computing, telecommunications, and digital infrastructure. While human beings intuitively count in base-10 (decimal)—a historical artifact likely derived from possessing ten fingers—binary relies strictly on powers of two. In the realm of computer science and electrical engineering, these abstract zeroes and ones physicalize into discrete electrical states, allowing intricate webs of microscopic wires and transistors to store memories, render complex graphics, and perform billions of calculations per second¹.

To understand the digital age, one must first understand binary. The following analysis explores the origins, mechanics, physical implementations, and advanced data structures of the binary system, dissecting how simple on/off switches scale into the profound complexity of modern computation.

The Anatomy of Binary Data: Bits, Bytes, and Base-2

At the most granular level, a computer processes information through tiny electrical impulses. To categorize these impulses mathematically, computer science defines specific units of measurement.

The fundamental unit of data in binary computing is the bit (a portmanteau of binary digit). A bit holds a single state: it is either a 0 or a 11. Because a single bit can only represent two concepts (e.g., true/false, yes/no), it is the smallest and most indivisible unit of data. To convey meaningful information, bits must be aggregated. A group of exactly eight bits is universally known as a byte1. A single byte can represent 256 different combinations (from 00000000 to 11111111), which provides sufficient variance to assign a unique binary pattern to every letter in the English alphabet, numbers 0 through 9, and common punctuation marks¹.

Building blocks of modern data are nothing more than vast collections of these bytes. Millions or billions of these bits are grouped together to store high-resolution photos, intricate text documents, high-definition videos, and the complex instructions that operate the computer's central processing unit¹.

How Binary Counting Works

To comprehend how a computer evaluates data, one must understand how binary counting differs from the daily base-10 decimal system. In the decimal system, each position to the left represents a power of ten (ones, tens, hundreds, thousands). Binary value increases by doubling each time you move one position to the left; each position represents a power of two¹.

Reading from right to left, the values of a binary number increase as follows:

• Rightmost position:
• Second position:
• Third position:
• Fourth position:

^1,2

To read a binary number, one simply identifies the positions containing a "1" and adds their corresponding place values together. The positions containing a "0" are ignored. Consider the 4-bit binary number 1011.

To convert 1011 into a standard decimal number, the place values are evaluated where a 1 appears:

• The fourth position is 1, so we calculate .
• The third position is 0, so we calculate .
• The second position is 1, so we calculate .
• The first position is 1, so we calculate .

Adding these values together yields: in decimal¹. Through this simple mechanism of doubling place values, any whole integer can be represented using a sufficiently long sequence of ones and zeroes.

The Physics of Binary: Why Computers Use Base-2

A logical question arises when observing the binary system: why do computers not use the base-10 (decimal) system natively, given that humans find it vastly easier to read? The answer lies fundamentally in the physics of electrical circuits and the strict necessity for operational reliability.

Computers use binary because electrical circuits are least prone to error when they only have to distinguish between two highly contrasting states: current flowing (on/1) or no current flowing (off/0)¹. If a computer were to use a decimal system, a single wire would need to distinguish between ten distinct voltage levels to represent the digits 0 through 9. Electrical signals, however, are subject to continuous degradation, interference, and "noise" generated by thermal dynamics and surrounding components⁴.

If a wire is supposed to carry exactly 4.0 volts to represent the digit "4," a slight dip in power or a burst of electrical static might drop the signal to 3.6 volts. A highly sensitive decimal receiver might misinterpret this as a "3," causing a catastrophic calculation error. Binary prevents signal distortion because minor voltage changes still clearly register as either a high state or a low state¹.

Logic Signal Voltage Levels and Noise Margins

In a physical circuit, a logic "1" and a logic "0" are not exact, singular voltages; they are broad, forgiving ranges. This forgiving nature is quantified by a metric known as a "noise margin," which characterizes the level of electrical noise that can appear on an input/output (I/O) pin without creating an error in the received logic state⁴.

Different families of logic gates possess different electrical specifications. Traditional Transistor-Transistor Logic (TTL) circuits operating on a 5-volt power supply feature specific acceptable ranges. A logic "0" (low state) output is guaranteed to be between 0 and 0.5 volts, while a logic "1" (high state) output is guaranteed to be between 2.7 and 5 volts⁵. However, the receiving component is engineered to be more tolerant than the sender. A TTL input will accept anything from 0 to 0.8 volts as a valid "0", and anything from 2.0 to 5 volts as a valid "1"⁵.

The difference between what the sender is guaranteed to output and what the receiver is willing to accept provides a vital buffer. For TTL gates, the low-level noise margin is 0.3 volts (the difference between 0.8V and 0.5V), and the high-level noise margin is 0.7 volts (the difference between 2.7V and 2.0V)⁵.

Modern digital systems primarily use Complementary Metal-Oxide-Semiconductor (CMOS) technology, which offers far greater noise immunity⁴.

As illustrated by the data, a 5-volt CMOS circuit accepts 0 to 1.5 volts as a "0" and 3.5 to 5 volts as a "1", providing a massive 1.45-volt noise margin for both states⁵. Any voltage that falls in the gap between the high and low thresholds (between 1.5 and 3.5 volts) is considered uncertain, and no manufacturer guarantees how the logic gate will interpret it⁵.

As computer processors have grown denser and faster to meet modern demands, core operating voltages have scaled down from 5V to Low-Voltage CMOS (LVCMOS) levels such as 1.8V, 1.2V, 1.0V, and even 0.8V4. As operating voltages shrink, the noise margins shrink proportionately. For example, a 1.8V CMOS system has a low noise margin of roughly 210 mV and a high noise margin of 250 mV4. Managing these microscopic tolerances against phenomena like ground bounce, crosstalk, and power rail noise is the primary challenge in contemporary high-speed printed circuit board (PCB) design⁴.

The Historical and Philosophical Origins of Base-2

The concept of binary arithmetic predates the invention of electronic computers by centuries, originating in philosophical and theological speculation before finding its ultimate application in electrical engineering.

Leibniz and the *I Ching*

The formalization of the binary number system is widely attributed to the 17th-century German philosopher and mathematician Gottfried Wilhelm Leibniz. In 1703, Leibniz published a seminal article titled Explication de l'Arithmétique Binaire (Explanation of Binary Arithmetic), which formally documented a number system utilizing only the characters 0 and 17. Within this paper, Leibniz demonstrated that all standard arithmetic operations—addition, subtraction, multiplication, and division—could be elegantly performed using this simplified base-2 system⁷.

A profound underlying theme of this discovery is Leibniz’s metaphysical motivation. He viewed the binary system not merely as a mathematical utility, but as a theological framework. In his philosophy, 1 represented unity (or God), and 0 represented the void (or nothingness), suggesting a "wonderful origin of all numbers" representing the mystery of creation wherein everything arises from God and nothing else¹⁰.

During this era, Leibniz engaged in extensive correspondence with Joachim Bouvet, a French Jesuit missionary residing in China⁹. Bouvet introduced Leibniz to the ancient Chinese text, the I Ching (Book of Changes), and specifically to the Xiantiantu diagram attributed to the mythological figure Fuxi⁹. This diagram organizes sixty-four hexagrams—symbols composed of stacked broken (yin) and unbroken (yang) lines¹¹. Bouvet and Leibniz realized a striking mathematical analogy: if a broken yin line is interpreted as 0 and an unbroken yang line as 1, the hexagrams map flawlessly to binary numbers from 0 to 6311.

While modern historians debate whether the Xiantiantu directly influenced Leibniz’s initial invention of binary or merely validated his prior independent mathematical work (which dates back to his 1679 manuscript De Progressione Dyadica), the philosophical resonance is undeniable¹¹. The realization that complex systems of natural and philosophical thought could be encoded into a binary framework laid the conceptual groundwork for Leibniz's dream of a "Universal Characteristic"—a universal formal language designed to eliminate ambiguity by reducing reasoning to mathematical calculation¹¹.

Claude Shannon and the Hardware Connection

Leibniz’s binary arithmetic remained a mathematical curiosity for over two centuries. It was not until 1937 that a practical application for binary logic was definitively established. Claude E. Shannon, a young research assistant at the Massachusetts Institute of Technology, authored a master’s thesis titled A Symbolic Analysis of Relay and Switching Circuits1. This document is widely regarded by historians as one of the most significant master's theses of the 20th century, as it laid the absolute foundation for all digital computing².

Shannon realized that the routing of telephone calls using electromechanical relays—switches that are physically either open or closed—perfectly mirrored the binary logic system developed by 19th-century mathematician George Boole¹. Boolean algebra evaluates logical propositions using only two values: True and False¹⁵. Shannon proved that these logic states physically correspond to electrical states: an open circuit (presenting infinite impedance, or no current flowing) equates to False or 0, and a closed circuit (zero impedance, or current flowing) equates to True or 11.

By demonstrating this strict isomorphism between algebraic logic and electrical circuits, Shannon proved that electrical switches could be arranged to evaluate any logical or mathematical proposition¹. If two switches are wired in series, current only flows if both are closed, perfectly replicating the logical AND function¹⁵. If two switches are wired in parallel, current flows if either is closed, replicating the logical OR function¹⁵. Shannon furthermore proved that theorems of Boolean algebra, such as the duality theorem and perfect induction, could be utilized to mathematically simplify complex electrical networks into forms requiring the least number of contacts, saving vast amounts of engineering effort¹.

Konrad Zuse and the Z3

While Shannon provided the theoretical framework in the United States, German engineer Konrad Zuse was concurrently applying binary principles to build the first functional, program-controlled computer. Working with limited resources during World War II, Zuse completed the Z3 in Berlin in May 194116.

Unlike earlier mechanical calculators, the Z3 operated purely on the binary system¹⁶. It was built using approximately 2,600 electromechanical relays (essentially magnetically controlled on/off switches) and implemented a 22-bit word length that operated at a clock frequency of about 5 to 10 Hertz¹⁶. Program code was fed into the machine via punched film¹⁶. Zuse chose binary deliberately to simplify the physical construction of his circuits, realizing that it made the connection with logic operations (AND, OR, NOT) vastly clearer than traditional decimal engineering¹⁸.

The Z3 was utilized by the German aerodynamics engineer Hans Georg Küssner to solve complex matrices regarding aircraft wing flutter problems¹⁷. Though the original Z3 was destroyed in an Allied bombing raid in 1945, its architecture cemented the fact that binary relays could achieve universal, programmable floating-point computation, predating the American ENIAC by several years¹⁶.

The Road Not Taken: Ternary Computing

While binary won the historical race, it is theoretically not the only option. A ternary numeral system uses base-3, relying on three digits: 0, 1, and 2. Alternatively, a system known as "balanced ternary" uses -1, 0, and 120. From a purely mathematical perspective, a base-3 system is highly efficient; it is mathematically proven to be closer to the optimal discrete signal encoding (radix economy) than binary, meaning it can represent larger numbers using fewer interconnection wires and digits (called "trits" instead of bits)²⁰.

In 1958, engineers at Moscow State University in the Soviet Union, led by Nikolai Petrovich Brusentsov, developed the Setun, a highly functional ternary computer²⁰. Refusing to conform to the growing binary orthodoxy, Brusentsov built the Setun utilizing magnetic ferrite-diode cells to represent the three states²⁴. The machine featured a single-address instruction set of 24 operations tuned specifically for the real workloads of the physics department, such as differential equations and numerical computation²⁴.

A distinct advantage of balanced ternary logic is that negative numbers are naturally captured without the need for an ad hoc "sign bit" prefix, streamlining basic arithmetical operations²¹. Despite the Setun operating reliably for fifteen years across fifty manufactured machines, ternary computers never achieved mass production²⁰.

The hardware required to reliably distinguish between three distinct physical voltage states is significantly more complicated to design than simple binary on/off switches²². Ternary machines typically have to be clocked slower than binary computers so as not to run into issues with threshold errors²². Consequently, the global manufacturing infrastructure rapidly consolidated around the simplicity and sheer clock-speed scalability of binary bits, relegating ternary systems to a historical curiosity.

The Mechanics of Computation: Logic Gates and Adders

Storing numbers in binary is only half the equation; a computer must be able to perform arithmetic upon them. This is achieved entirely through the clever arrangement of the logic gates (AND, OR, and XOR circuits) pioneered by Claude Shannon's theories²⁵. The fundamental building block of all digital computation is binary addition²⁷.

Binary addition rules are remarkably similar to decimal addition, just constrained to two digits:

• 0 + 0 = 0
• 0 + 1 = 1
• 1 + 0 = 1
• 1 + 1 = 10 (which is 0, with a carry of 1 to the next column)²⁵

The Half Adder

To perform this operation electronically, engineers combine logic gates into a combinational circuit called a Half Adder25. A Half Adder takes two input bits (A and B) and produces two outputs: a Sum (S) and a Carry (C)²⁵.

Analyzing the Boolean logic and Karnaugh maps (K-maps) for binary addition reveals that the Sum behaves exactly like an Exclusive-OR (XOR) logic gate, which outputs a 1 only if the inputs are different ()²⁵. Conversely, the Carry behaves exactly like an AND gate, which outputs a 1 only if both inputs are 1 ()²⁵.

Therefore, a Half Adder is physically constructed by splitting the two input wires and sending them simultaneously into an XOR gate to calculate the Sum, and an AND gate to calculate the Carry²⁵.

Half Adder Truth Table:

Data confirms that while elegant, the Half Adder has a fatal limitation: it cannot accept a carry from a previous bit position25. When adding numbers larger than one bit, carrying values to the next significant column is essential (just like carrying a "1" in grade-school addition).

The Full Adder

To solve the limitation of the Half Adder, a more complex circuit known as a Full Adder is required. A Full Adder takes three inputs: Input A, Input B, and an incoming Carry-In () from a previous calculation²⁸. It computes these values to produce a finalized Sum and a Carry-Out ()²⁶.

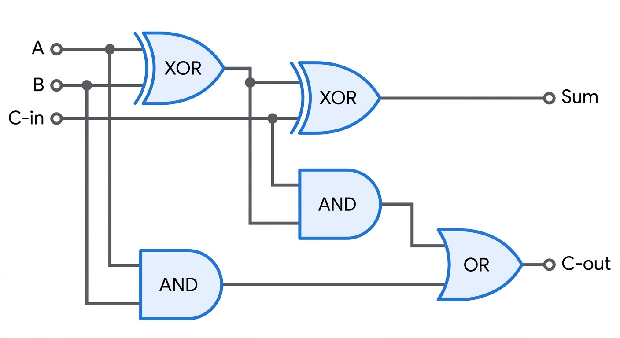

A Full Adder is practically constructed by cascading two Half Adders together, combined with a single OR gate²⁵. The Boolean logic dictates that the Sum is calculated via an extended XOR operation: 25. The Carry-Out is calculated by determining if at least two of the three inputs are 1s, using the equation 25.

Full Adder Truth Table:

By linking these Full Adders together in a chain—where the of the least significant bit feeds directly into the of the next most significant bit—engineers create a Ripple-Carry Adder25. A standard 32-bit computer processor fundamentally relies on a 32-stage addition circuit to calculate vast integers in fractions of a microsecond, propagating the electrical carry signals across the chip structure²⁵.

Representing Negative Numbers: The Elegance of Two’s Complement

To be universally useful, computers must be able to process negative numbers and perform subtraction. Because raw binary only consists of positive powers of two, representing a negative value requires a specific data encoding structure³¹.

The Flaws of Sign-and-Magnitude and One’s Complement

The most intuitive human approach is a "Sign-and-Magnitude" system: use the leftmost bit (the Most Significant Bit, or MSB) purely as a minus sign. Under this paradigm, a "0" signifies positive, and a "1" signifies negative³². For example, in a 4-bit binary sequence:

• 0 0 1 1 = +3
• 1 0 1 1 = -3

While incredibly easy for humans to read, this creates a catastrophic issue for computer hardware: the "negative zero" problem³⁴. Under sign-and-magnitude, 0 0 0 0 is +0, and 1 0 0 0 is -034. Having two different binary strings represent the exact same mathematical value forces the computer's Arithmetic Logic Unit (ALU) to perform complex, time-consuming checks before every calculation to verify which "zero" it is dealing with.

A slightly better historical method is One’s Complement, where a negative number is created by taking the positive number and flipping every single bit (0s become 1s, 1s become 0s)³².

• 0 0 1 1 = +3
• 1 1 0 0 = -3

However, One's Complement still suffers from the dual zero problem, because taking the complement of 0 0 0 0 results in 1 1 1 1 (negative zero)³⁴.

The Industry Standard: Two’s Complement

To resolve these hardware inefficiencies, computer scientists standardized upon Two’s Complement representation³¹. Two's complement entirely eliminates the negative zero and, incredibly, allows the computer to perform subtraction operations using the exact same addition circuits (Full Adders) described earlier, streamlining processor design³².

To mathematically determine the Two’s Complement of a binary number, a simple process is followed:

1. Identify the positive binary number.
2. Flip all the bits (the One's Complement).
3. Add 1 to the least significant bit (LSB) of the result³¹.

To calculate the Two's Complement representation of -5 using an 8-bit byte:

• Start with +5: 0 0 0 0 0 1 0 1
• Flip all bits: 1 1 1 1 1 0 1 0
• Add 1: 1 1 1 1 1 0 1 1

Therefore, 11111011 is the universally recognized 8-bit representation of -533.

The mechanical brilliance of this system becomes apparent when the computer attempts to add +5 and -5 together. Intuitively, the mathematical result must be exactly zero.

• (+5) 0 0 0 0 0 1 0 1
• (-5) 1 1 1 1 1 0 1 1
• Sum: 1 0 0 0 0 0 0 0 0

^34,37

Notice that the sum results in a 9-bit number. Because the hardware memory register only holds 8 bits, the 9th bit (the overflow carry on the far left) simply falls off the end of the physical wire and is discarded³². The remaining 8 bits are 00000000. The math inherently and perfectly corrects itself without needing complex logic checks³⁴. By manipulating the number line in this modular, wrap-around fashion, hardware designers eliminated the need to build separate "subtractor" circuits; a computer simply calculates 6 minus 5 by mathematically adding 6 to the Two's Complement of 534.

One structural side effect of Two's Complement is that the range of numbers is slightly asymmetrical³⁵. In an 8-bit signed integer format, the maximum positive number is +127 (01111111). The maximum negative number, however, is -128 (10000000). Taking the Two's complement of -128 paradoxically results in -128 again, a hardware quirk known as the "weird number" exception³¹. Because the absolute value of the most negative number is too large to represent within the same bit-length, developers must strictly monitor integer bounds to prevent overflow errors (which in modern software languages like C#, throws a System.OverflowException)³¹.

Representing Fractions: The IEEE 754 Standard and BCD

Integers alone are insufficient for scientific computation, 3D graphics rendering, or macroeconomic modeling. Computers must represent fractions and massively varying scales—from the subatomic mass of an electron to the astronomical distance between galaxies. This is managed by Floating-Point arithmetic³⁸.

While early machines like Konrad Zuse's Z3 implemented rudimentary floating-point formats, the modern computing industry relies entirely on the IEEE Standard 75416.

The IEEE 754 format is the binary equivalent of scientific notation³⁹. In standard base-10 scientific notation, a number is written as . It consists of a sign (positive), a mantissa or fraction (), and an exponent (). The IEEE 754 standard maps these exact three conceptual components into a fixed, rigid string of binary bits³⁹.

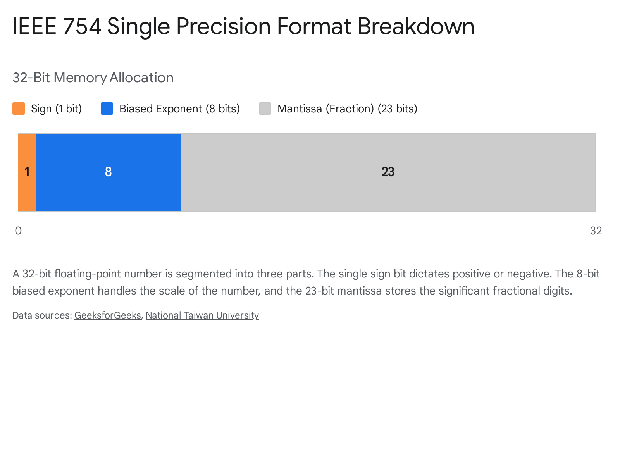

In a 32-bit "Single Precision" floating-point number, the bits are strictly allocated as follows:

1. The Sign Bit (1 bit): The most significant bit on the far left. A 0 indicates a positive number; a 1 indicates a negative number³⁹.
2. The Biased Exponent (8 bits): This section dictates the scale (the power of 2). To easily handle extremely small fractions (negative exponents) without using Two's Complement here, the exponent is "biased." In a 32-bit float, a constant bias of 127 is added to the actual mathematical exponent³⁹. If the real exponent is , the computer stores , which translates to 10000010 in binary.
3. The Normalised Mantissa (23 bits): The actual significant digits of the number. Because binary scientific notation always normalizes numbers to start with a "1" (e.g., ), the leading "1" is mathematically guaranteed to be there. The IEEE 754 standard assumes this leading 1 is implicitly present, freeing up an extra bit of precision for the remaining fractional digits³⁹.

The IEEE 754 standard also reserves specific binary patterns for computational edge cases. An exponent of all zeroes accompanied by a mantissa of all zeroes represents the absolute value of 039. If the exponent is all zeroes but the mantissa contains values, it denotes a "Denormalized" number, providing graceful underflow for numbers exceedingly close to zero³⁹. If the exponent is all ones and the mantissa is all zeroes, the value is evaluated as Infinity (positive or negative depending on the sign bit)³⁹. If the exponent is all ones, but the mantissa contains ones, the value is rendered as NaN (Not a Number), which safely represents the result of an impossible calculation like dividing zero by zero³⁹.

Binary Coded Decimal (BCD): The Financial Alternative

While IEEE 754 handles floating-point math flawlessly for scientific applications, it is not universally perfect. It can introduce minute, systemic rounding errors with specific decimal fractions (like 0.1) because some base-10 decimals result in infinitely repeating base-2 fractions (similar to how 1/3 is infinitely repeating in base-10). In financial software and banking mainframes, where losing fractions of a cent over millions of high-frequency transactions is catastrophic, an alternative structure called Binary Coded Decimal (BCD) is utilized⁴¹.

In BCD, the system does not convert the entire integer into a massive, contiguous binary string. Instead, it maps each individual decimal digit directly to a dedicated 4-bit binary sequence (a "nibble")⁴².

As shown in the data comparison, the decimal number 35 is normally represented in pure binary as 00100011. In BCD, the decimal digits 3 and 5 are handled as distinct entities, yielding 0011 010143.

The major drawback of BCD is profound memory inefficiency. Four bits offer 16 possible combinations, but BCD only uses 10 of them (0 through 9). The combinations 1010 through 1111 (representing 10 to 15 in decimal) are entirely wasted⁴¹. Consequently, counting up to 9,999 in pure binary requires only 14 bits (since ), whereas a BCD counter requires 16 bits (4 bits per decimal place)⁴¹. Thus, BCD is selected strictly for applications where absolute base-10 numerical precision and human-readable decimal mapping vastly outweigh hardware memory storage efficiency⁴¹.

Safeguarding Data Integrity: Parity and Hamming Codes

The final critical pillar of the binary ecosystem is error detection and correction. Physical computers exist in a chaotic, entropic universe. Background radiation, cosmic rays, electrical surges, or simple silicon degradation can occasionally cause a transistor to physically flip state, spontaneously changing a stored 0 to a 1 (known as a single-bit error)⁴⁴. If this single flipped bit dictates the sign of a multi-million-dollar financial transfer or a critical aircraft telemetry reading, the physical consequences are disastrous.

To account for this physical reality, engineers encode mathematical redundancy directly into the data transmission, allowing the computer to verify integrity autonomously.

The Limits of Simple Parity Bits

The simplest form of error detection is the parity bit. When a computer prepares to transmit a block of data, it counts the total number of 1s in the binary sequence⁴⁵.

In an Even Parity system, the total number of 1s (including the parity bit itself) must always sum to an even number⁴⁵. If the data block is 1 1 0 1 0 1 0, there are four 1s. Because four is already an even number, the parity bit attached to the end is 0, making the final transmitted code 1101010045. Conversely, if the data block contains five 1s (e.g., 1 1 0 1 0 1 1), the computer attaches a 1 as the parity bit, bumping the total number of 1s up to six, thereby restoring even parity⁴⁵.

When the receiver ingests the data, it recalculates the parity. If it expects even parity but counts an odd number of 1s, it instantly deduces a bit was corrupted during transmission and requests a resend⁴⁵.

However, basic parity checks possess fatal flaws. The most prominent is the "false positive" during multi-bit errors. If two bits flip simultaneously during transmission, the total count of 1s changes by +2 or -2, meaning the parity remains technically even⁴⁵. The severe error goes completely undetected. Furthermore, a single parity bit only alerts the system that an error exists somewhere in the block; it cannot identify which specific bit flipped, meaning the system cannot autonomously fix the error without a retransmission⁴⁵.

Hamming Codes and Autonomous Correction

To achieve true autonomous error correction, Richard Hamming of Bell Labs invented the Hamming Code in 195046. The genius of the Hamming Code is that it intertwines multiple parity bits within a single data block, positioning them mathematically so their "zones of protection" overlap and cross-reference one another⁴⁶.

Hamming mathematically determined that the number of parity bits () required for a specific length of data bits () must satisfy the inequality 44. Thus, to securely transmit a short 4-bit data sequence, 3 parity bits are required, creating a 7-bit codeword⁴⁴.

In a standard Hamming Code structure, the parity bits are strategically embedded at index positions that represent powers of 2 (positions 1, 2, 4, 8, 16, etc.)⁴⁹. The actual data bits fill in the remaining gaps (positions 3, 5, 6, 7, 9, etc.)⁴⁹.

The core mechanism relies on overlapping subsets. As indicated by the mathematical structure, in a 7-bit Hamming Code, the parity bits are positioned at index 1, 2, and 4, checking distinct but intersecting sets of data bits.

Each parity bit acts as an overseer for its unique subset. The power of this structure lies in the overlap. Notice that the data residing at position 7, for example, is monitored by Parity 1, Parity 2, and Parity 4 simultaneously⁴⁷.

If the data at position 7 flips due to cosmic radiation, Parity 1 will fail its check, Parity 2 will fail its check, and Parity 4 will fail its check. The receiving computer simply takes the index values of the failed parity positions and adds them together ()⁴⁵. The resulting sum pinpoints the exact physical location of the error: bit 7. Because the system utilizes binary logic, knowing a bit is wrong equates to knowing exactly how to fix it—the hardware simply inverts bit 7 (from a 1 to a 0, or vice versa), mathematically healing the corrupted data without ever needing to request a new transmission from the sender⁴⁶.

Conclusion

The trajectory of the binary system—from Leibniz's philosophical musings on the ancient I Ching to Claude Shannon's profound realization regarding circuit blueprints, and ultimately to the intricate architecture of modern silicon—is a testament to the supreme power of mathematical abstraction⁹. By reducing all logic, calculation, and memory into two indisputable states, engineers effectively isolated computing from the physical volatility of the analog real world.

Wide CMOS noise margins protect physical hardware from electrical chaos, Half and Full Adders transform static voltage into dynamic calculation, Two's Complement bends the number line to eliminate mechanical inefficiency, and Hamming Codes provide a robust immune system against physical data degradation. The brilliance of binary computing does not lie in its raw processing power, but in its profound, irreducible simplicity. It proves that with only two distinct states, arranged with sufficient architectural logic, any degree of complexity can be constructed.
